Scintillation Detectors
XDS Oxford Scintillation Detectors come in two sizes and various configurations that are tailored to meet your individual needs, whether that is an individual detector or an array for a Multi Crystal analyser.

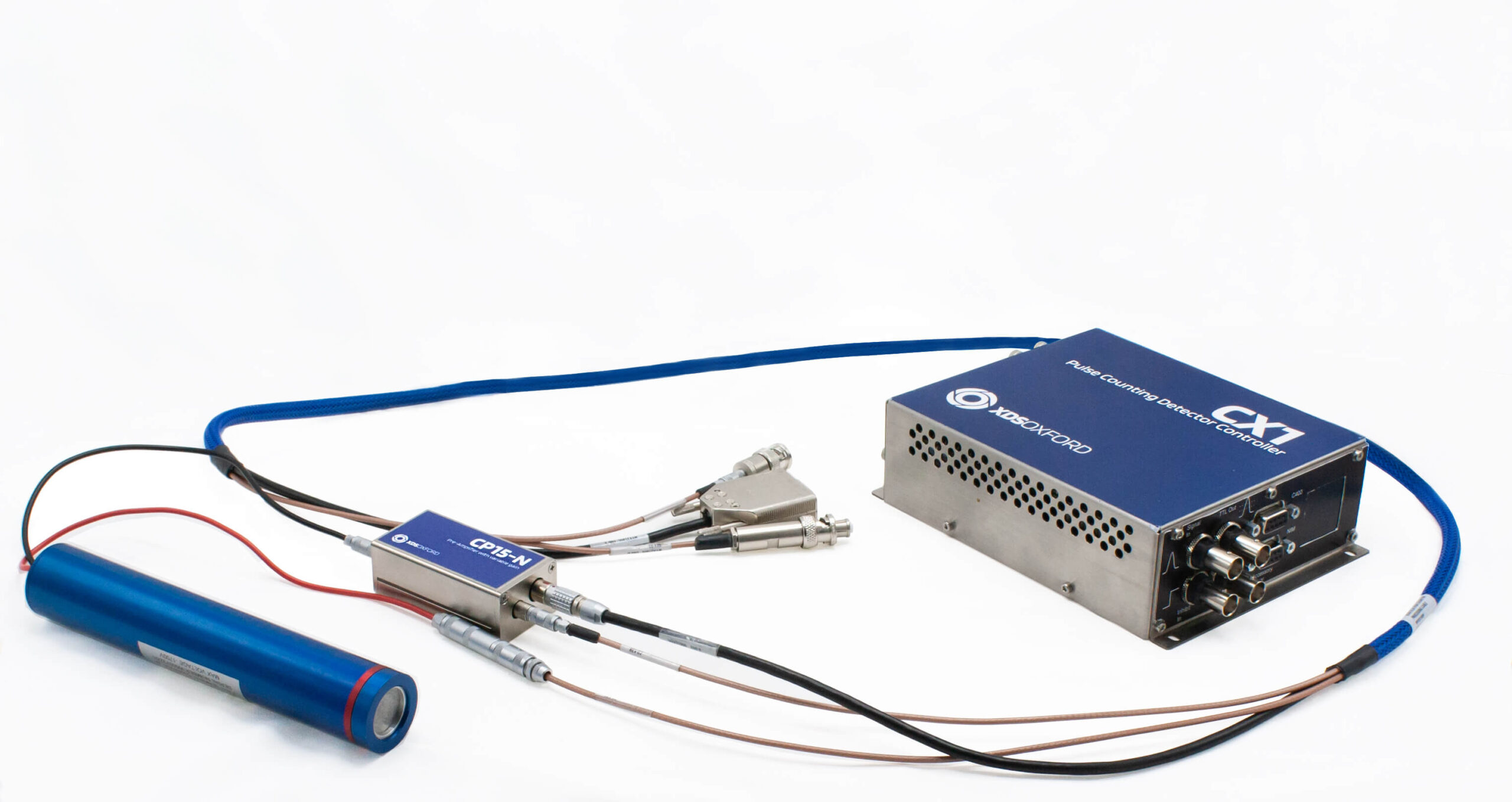

The Scintillation Detector is made up of 4 components; a scintillation detector head, pre-amplifier electronics (CP), signal cable and Pulse Processing electronics (CX1 or C400).
Scintillation Detector System
In the detector head is a scintillation crystal, which absorbs X-rays and produces visible photons. The crystal is optically coupled to a photomultiplier tube which converts the light into an electronic signal; the amplitude of which is dependent on the incident X-ray intensity. The signal is then pre-amplified by the CP15-N (NaI crystal) or CP15-L (LaBr3 crystal) before being transferred to the C400 for pulse processing.
| Description | Part number |
|---|---|
| Nal Detectors | |
| NaI Detector Ø13 mm 2.5 mm (w) | C13Na25B |
| NaI Detector Ø13 mm 5.0 mm (w) | C13Na50B |
| NaI Detector Ø30 mm 2.5 mm (w) | C30Na25B |
| NaI Detector Ø30 mm 5.0 mm (w) | C30Na50B |
| LaBr3 Detectors | |
| LaBr3 Detector Ø13 mm 2.5 mm (w) | C13LaBr25B |
| LaBr3 Detector Ø30 mm 2.5 mm (w) | C30LaBr25B |
Crystal Types
XDS Oxford offer Sodium Iodide and Lanthanum Bromide scintillation crystals in multiple widths. Your individual choice is a balance between count rate and energy resolution.
The highest performing crystal is the Lanthanum Bromide with a decay time of 16 ns. It can register faster photon rates and output a greater light signal per photon than any other crystal type.
CP15-L & CP15-N Fast Pulse Pre-Amplifier
The CP15 models are intended to amplify and condition charge pulses generated by scintillation detectors based on photomultipliers.
The CP15-N has gain and filtering suited to sodium iodide (NaI(Ti)) scintillation detectors. The burst of fast charge pulses from a single detection event is converted to a single smooth output pulse, well-suited to discrimination or pulse height analysis.
The CP15-L has gain and filtering suited to lanthanum bromide (LaBr3) scintillation detectors. These detectors are considerably faster than sodium iodide detectors and are preferred for higher count rates. The CP15-L has a corresponding faster response, using filtering that provides a single output pulse per detection event but without compromising pulse pair resolution.
CX1 Single-Channel Pulse Processing Unit
Features
- Fast scalar input
- Hardware discriminator for counting
- Hardware discriminator for timing
- Digital monitor output
- Gate input
- Configurable analogue and digital I/O
- Interlock relay outputs
- Ethernet interface with web server UI
- EPICS API included, with TANGO drivers coming soon
- Discriminator sweep function
- ± 12V power outputs for pre-amplifiers
Applications
- Pulse counting detector readout and control
- Scintillation and diode detectors
Options
- Auxiliary HV output options up to ± 2000V (polarity specified on order)
- Panel mounting case
C400 4-Channel Pulse Processing Unit
Features
- Four independent channels with fast discriminators, scalers, pre-amp power and high voltage
- Able to control photomultipliers and APDs
- 10 nsec pulse pair resolution
- 150 MHz discriminator bandwidth
- Trigger distribution facility for large detector arrays
- Quadrature encoder input
- Multiple host interface options
Applications
- Fast scintillator readout for NaI and LaBr3
- Avalanche photodiode readout
- Detector array readout for area and position sensing detectors
- Diffraction experiments
Options
- HV range and polarity selections
- Matching pre-amplifiers to suit supported detector types
Specifications
| Foil material | Kα, (kev) |
|---|---|
| Al | 1.49 |
| Ti | 4.51 |
| Cr | 5.41 |
| Fe | 6.40 |
| Ni | 7.48 |
| Au | 68.79 |
Ordering Information
| Description | Part number |
|---|---|
| Fast Pulse Pre-Amplifier (NaI) | CP15-N |
| Fast Pulse Pre-Amplifier (LaBr3) | CP15-L |
| Single-Channel Pulse Processing Unit | CX1-N20 |
| 4-Channel Pulse Processing Unit | C400-4XN20 |
| Scintillation PPU cable 5 m | WYX31905 |
| Scintillation PPU cable 10 m | WYX31910 |
| Scintillation PPU cable 15 m | WYX31915 |
| Scintillation PPU cable 20 m | WYX31920 |
| RS232 9 Pin cable 5 m | WYX29505 |
| RS232 9 Pin cable 10 m | WYX29510 |
| RS232 9 Pin cable 15 m | WYX29515 |
| RS232 9 Pin cable 20 m | WYX29520 |
