UHV Diamond Beam Position Monitor (scDBPM)

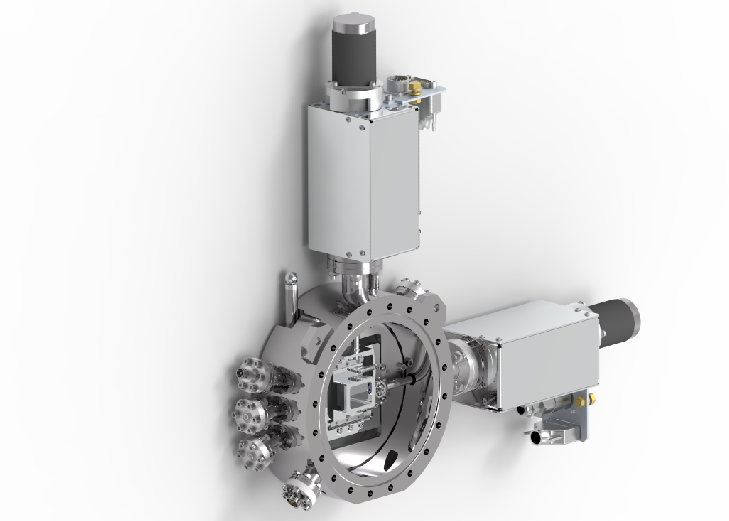

The XDS Oxford in-flange UHV single crystal Diamond BPM (scDBPM) utilises proven motion and vacuum technologies from our existing BPM range. This, combined with state-of-the-art diamond-based detectors, provides high precision position and intensity measurements of X-ray beams between 5keV and 20keV.
This solution has already been deployed on 4th generation Synchrotron beamlines and is now available as a standard product.
The UHV Diamond BPM (scDBPM) has been designed for use with monochromatic X-rays and works most efficiently with beamlines in the micron or nano scale.
This system uses a single crystal diamond detector with a 20µm or 50µm sensor. The detector has excellent transparency preventing disturbance of the X-ray beam.
This system uses Stepper Motors as standard for vertical and horizontal movement. Harmonic drives are also available upon request.
The UHV Diamond BPM comes in a DN160CF200 (8”) flange as standard.
Specifications
| Description | UHV DBPM DN160CF200 8” |
|---|---|
| Part Number | AQM0378 |
| Beam aperture | 3 mm |
| Helium leak rate | < 1 x 10-9 mbar l/sec |
| Vacuum | UHV Compatible < 1 x 10-9 mbar |
| Vertical translation (Drive) | Stepper motor (Encoded) |
| Range | ± 7 mm |
| Resolution | < 0.1 µm |
| Repeatability | < 1 µm |
| Horizontal translation (Drive) | Stepper motor (Encoded) |
| Range | ± 4 mm |
| Resolution | < 0.1 µm |
| Repeatability | < 1 µm |
