In-Flange Slits

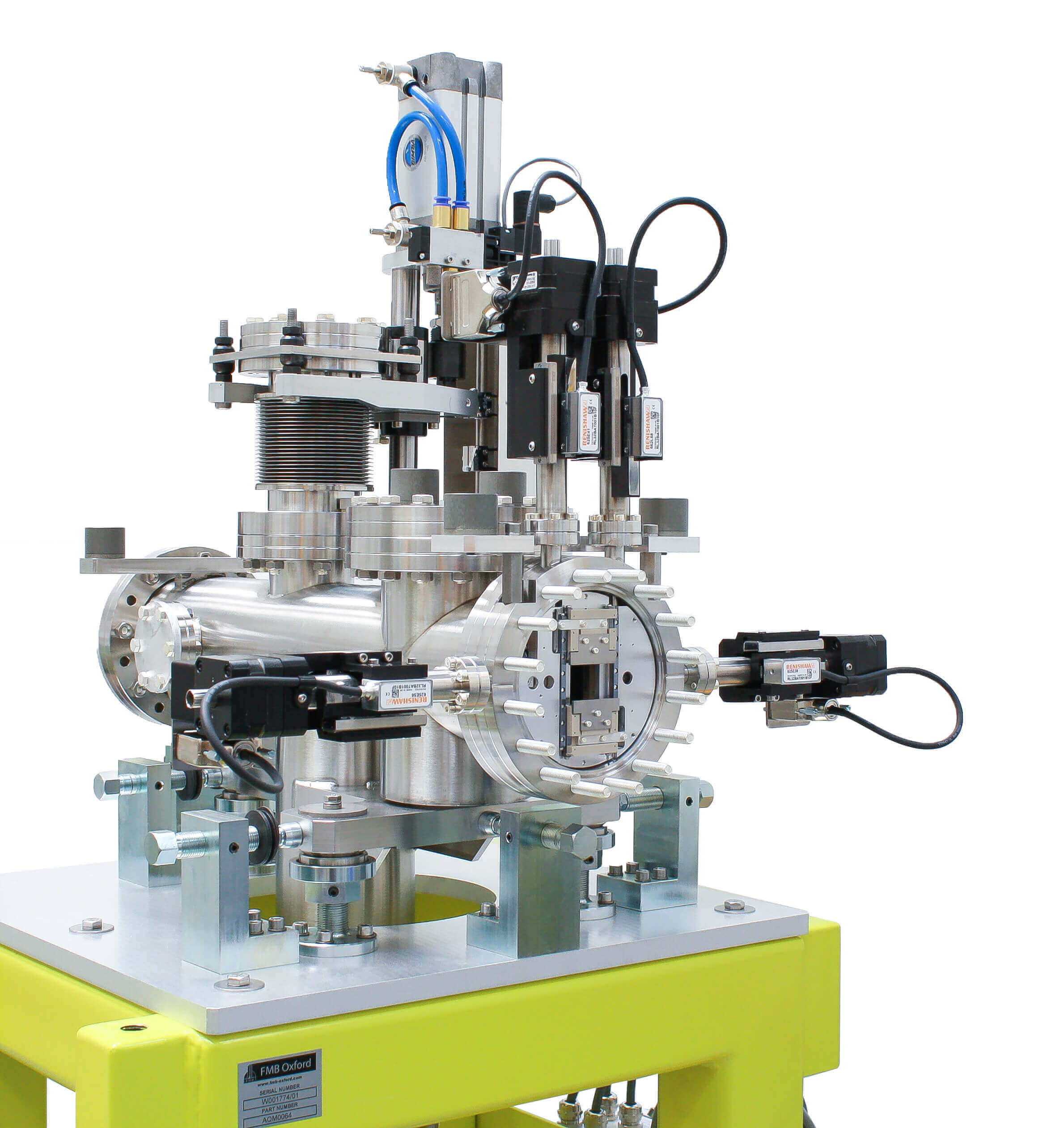

For monochromatic beam applications, XDS Oxford’s range of UHV compatible in-flange slits are a tried and trusted solution. Each pair of independently movable blades is controlled by in-vacuum guides to ensure they remain parallel to each other, and precisely define the horizontal and vertical dimensions of the beam.
Depending on the size, shape and energy requirements of a particular beamline, the in-flange slits can be customised to suit specific needs. Options include:
- Conflat flange size DN100, DN160
- Aperture size
- Blade material, edge type and thickness
- Cooled or uncooled blades
- Absolute or Incremental encoders
- Drain current measurement
| Description | In-Flange Slits |
|---|---|
| Flange Size | DN100CF/DN160CF |
| Maximum Aperture Size | 25mm x 25mm DN100, 45mm x 45mm DN160 |
| Vacuum (UHV Compatible) | < 1 x 10-9 mbar |
| Helium Leak Rate | < 10 x 10-10 mbar l/sec |
| Translation | 2 Phase Bipolar Stepper Motor |
| Motor Connector | 12 way Trim Trio |
| Resolution | < 0.5µm |
| Repeatability | < 5µm |
| Limit Switches | Vacuum compatible limit switches and hard stops |
For further information on how we can meet your specific requirements, please contact us.
